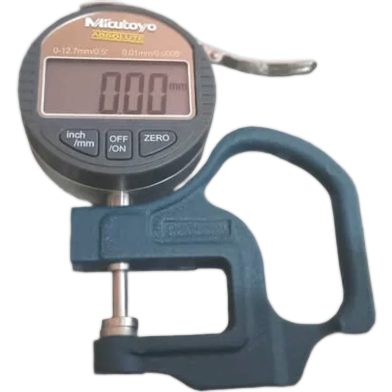

The Mitutoyo 547-301 Digital Thickness Gauge measures thin foils, paper, and metal sheets. A 0-12.7mm range provides data at 0.01mm resolution with ±0.02mm accuracy. This digital version replaces the analog 7301, adding an LCD readout and SPC data output for computerized logging.
Key Features
- IDS Digimatic Display: LCD readout with 0.01mm resolution and 0.02mm accuracy. It stops reading errors.
- Ceramic Contact Points: Hardened non-metallic measuring faces resistant to abrasion and wear. They resist rust in high humidity.
- SPC Data Output Port: Integrated Digimatic SPC interface for wired data transmission systems. It connects to external software.
- 1.5 N Measuring Force: Low-tension spring mechanism for consistent pressure on thin samples. It avoids crushing soft materials.
- SR44 Battery Power: Single cell operation providing approximately 20,000 hours of life. It lasts through multi-shift use.
Frequently Asked Questions
How to calibrate Mitutoyo digital thickness gauge?
Clean the ceramic contact points and press the Origin button while the anvils are closed. This sets the 0.00mm reference point for subsequent measurements.
Is Mitutoyo 547-301 waterproof?
This gauge lacks an IP rating for water resistance. Keep the electronics dry to avoid circuit failure or display glitches.
