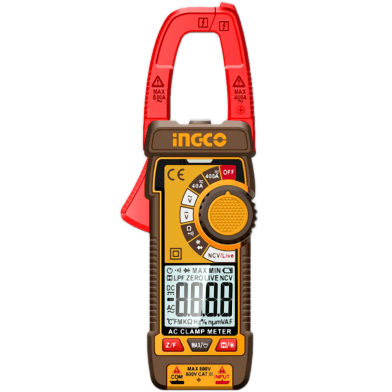

Ingco Dc Ac Clamp Meter 4000 Counts - DCM62002

Summary

The Ingco DCM62002 is a True RMS clamp meter measuring up to 600V and 400A AC current. A 4000-count LCD provides precise data during circuit testing and electrical troubleshooting. This version includes an integrated flashlight for dark panels, replacing the older DCM62001 which lacked on-board lighting.

Key Features

1. True RMS Measurement: Accurate readings for non-linear loads. Handles distorted waveforms common in modern electronics.
2. Integrated Flashlight: Built-in LED light source. Clears visibility in dark junction boxes during load shedding.
3. NCV Detection: Non-contact voltage sensing. Pinpoints live wires without direct contact with conductors.
4. 4000 Count Display: High-resolution digital readout. Improves precision for resistance and capacitance checks.
5. 600V Range: Measurement capacity from 400mV to 600V. Covers standard residential and commercial electrical systems.

Frequently Asked Questions

Does Ingco DCM62002 measure DC current?

No, this model measures AC current only up to 400A. It supports DC voltage but lacks the internal hall-effect sensor for DC amperage.

How to use NCV on Ingco clamp meter?

Move the sensor tip near a suspected live wire or outlet. The device emits an audible and visual signal when it detects voltage.
