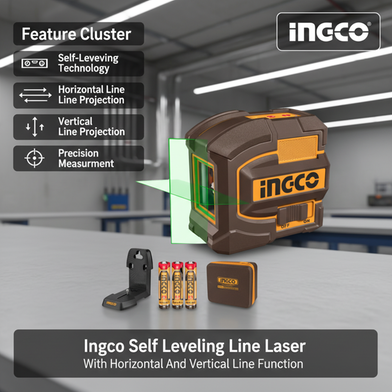

Ingco Self Leveling Line Laser With Horizontal And Vertical Line Function - HLL156601

Brand: INGCO
TK. 6250

Highlights:

  • Material:
    Metal, Plastic
  • Country of Origin:
    China
  • Measuring Tools Type:
    Line Lasers

Specification:

Name
Ingco Self Leveling Line Laser With Horizontal And Vertical Line Function - HLL156601
Category Measuring & Levelling
Material
Metal, Plastic
Country of Origin
China
Measuring Tools Type
Line Lasers
Laser color
Red
Laser Class
Class II
Operating Temp
0-40°C
Laser Wavelength
650 nm
Power Source
3x1.5V AA
Company INGCO

Summary:

The Ingco HLL151501 Self-Leveling Line Laser projects intersecting red beams across a 15-meter working range. Within 4 seconds, the internal pendulum stabilizes to provide ±1.5mm accuracy at 5m distances. It replaces manual spirit levels for indoor tile layout and cabinetry installation.

Key Features

  1. Cross-Line Projection: Emits horizontal and vertical red beams at 650nm wavelength. Projects visible alignment points on walls to simplify framing tasks.
  2. 360° Magnetic Bracket: Rotatable mounting base with integrated high-strength magnets. Grips steel studs or door frames to keep hands free.
  3. Automatic Self-Leveling: Internal gravity pendulum compensates for surface tilts up to 4°. Corrects minor floor unevenness without the need for manual adjustment.
  4. 15-Meter Range: Class II red laser diode visible across residential room spans. Maintains line clarity for consistent measurements in typical indoor lighting.
  5. AA Battery Power: Operates using three standard 1.5V AA alkaline cells. Swapping batteries keeps the laser running during BD power outages.

Frequently Asked Questions

How to use Ingco self leveling laser?

Place the unit on a stable surface and slide the power switch to unlock the pendulum. The lines stop blinking once the device levels itself within a 4-degree tilt range.

Is Ingco HLL151501 waterproof?

This model does not carry a formal waterproof IP rating. Keep the device dry to prevent damage to the internal 650nm laser diode and circuitry.
