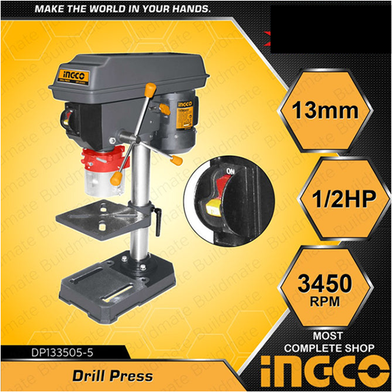

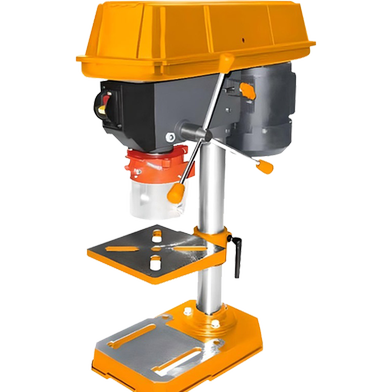

INGCO DP133505 Drill Press

Brand: INGCO
user-icon2 user want this item!
info-icon
2 verified Rokomari customers added this product in their favourite lists
TK. 11800

Highlights:

  • Colour:
    Yellow
  • Weight:
    19Kgs
  • Dimensions:
    Spindle travel:50mm
    Column diameter:46mm
    Table size:160mmx160mm
    Base size:291mmx183mm
    Machine height:590mm

Specification:

Name
INGCO DP133505 Drill Press
Category Drills & Drivers
Colour
Yellow
Weight
19Kgs
Dimensions
Spindle travel:50mm
Column diameter:46mm
Table size:160mmx160mm
Base size:291mmx183mm
Machine height:590mm
Model
DP133505
Voltage
:220-240V
Frequency
~50Hz
No-load Speed
580-2650rpm
Maximum Drilling Capacity
13mm
Motor Power
0.5 HP
Workbook Type
Adjustable
Drive System
Belt Drive
Company INGCO

Summary:

The INGCO DP133505 is a 350W benchtop drill press designed for fixed-position boring through metal and timber. A 13mm keyed chuck secures various bit sizes for workshop tasks. This updated model improves motor efficiency compared to the older DP133501 to maintain torque under sustained load.

Key Features

  1. 5-Speed Adjustable Spindle: Mechanical belt system provides speeds from 580 to 2650 rpm. Matches rotation speed to specific material density.
  2. 45-Degree Tilting Worktable: Support surface pivots 45 degrees left or right from center. Enables accurate angled holes for joinery or fabrication.
  3. Heavy-Duty Cast Iron Base: Thick metal casting reduces vibration during high-speed spindle rotation. Stabilizes the unit on typical local wooden workbenches.

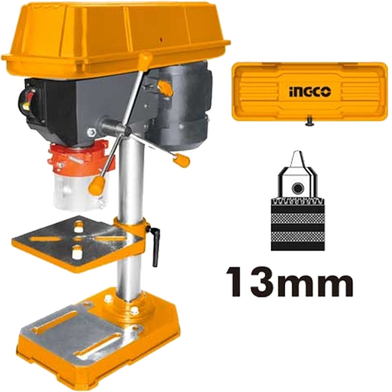

  4. 13mm Chuck Capacity: Standard industrial chuck accepts shank sizes up to 13mm. Fits common twist, spade, and masonry bits.
  5. 0.5 HP Induction Motor: 350W power output drives the spindle through thick workpieces. Resists stalling during repetitive drilling in hardwoods.

Frequently Asked Questions

What is the drilling capacity of INGCO DP133505?

The chuck accepts drill bits with a maximum shank diameter of 13mm. This capacity covers most standard boring requirements for wood and mild steel.

How to change speed on INGCO drill press?

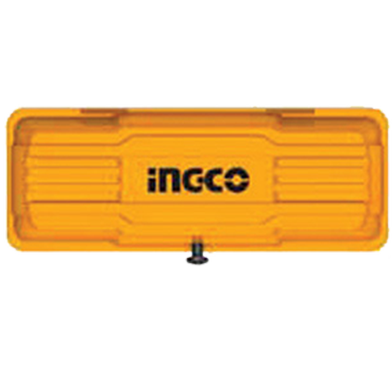

Open the top pulley housing and manually shift the drive belt between the five pulley steps. Specific belt positions determine the final spindle rpm.
