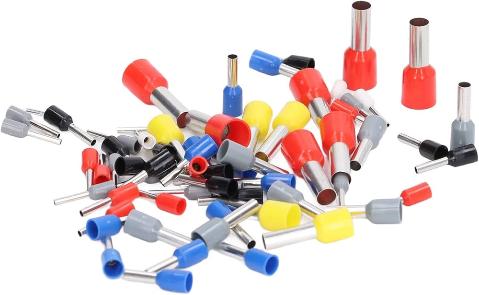

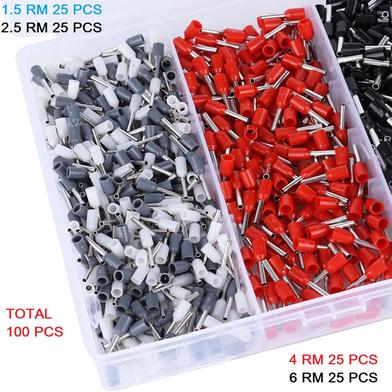

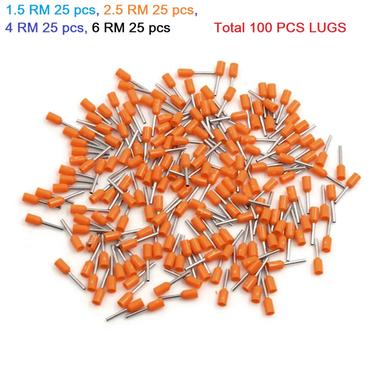

Insulated Cord Pin End Terminal,Copper Crimp Connectors, Wire Connector (4 Size and , Pack of 100)

With an electrolytic copper core, the Insulated Cord Pin End Terminal Crimp Connector Set secures stranded wire terminations. It handles a 22-16 AWG range for standard electrical blocks. These ferrules stop wire splaying under heavy-vibration or high-load conditions.

Key Features

1. Tin-Plated Copper: Electrolytic copper body with a protective tin finish. Stops oxidation in high-humidity environments.

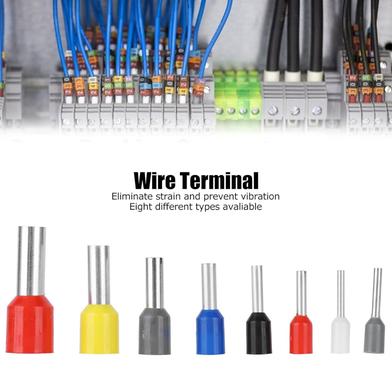

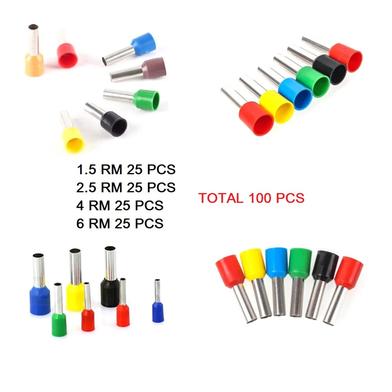

2. Color-Coded Insulation: PVC and Nylon sleeves in four distinct colors. Identifies circuit paths quickly during complex panel wiring.
3. Funnel Entry Design: Tapered DIN46228 entry for 0.5-1.5 mm² wires. Speeds up wire insertion without snagging individual strands.
4. High-Heat Rating: 600V maximum capacity at temperatures up to 105°C. Withstands heat spikes during prolonged industrial load cycles.

Frequently Asked Questions

How to crimp insulated pin terminals?

Insert the stripped 22-16 AWG wire into the ferrule sleeve. Use a dedicated crimping tool to compress the metal tube onto the conductor.

What is the difference between insulated and non-insulated terminals?

Insulated versions include a PVC or Nylon shroud. This sleeve prevents accidental short circuits between adjacent terminals in tight spaces.
