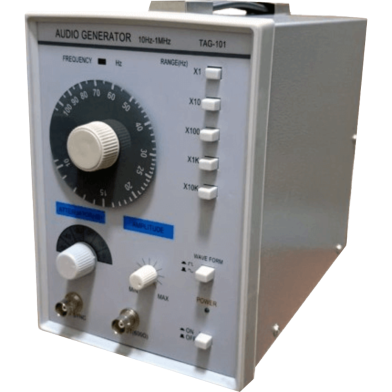

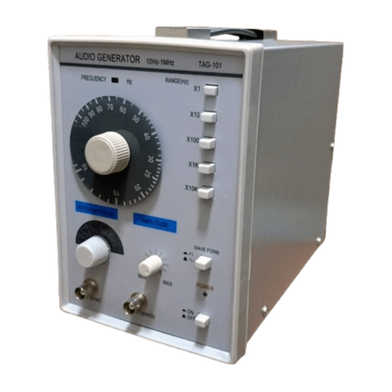

Across a 10Hz to 1MHz spectrum, the TAG101 Audio Signal Generator outputs sine and square waves. It uses a Wien Bridge Oscillator to maintain high frequency stability during calibration. The 600Ω output impedance connects directly to standard audio gear for diagnostic testing.
Key Features
- Wien Bridge Oscillator: Maintains high frequency stability through the 10Hz to 1MHz range. Signal stays locked during long testing sessions.
- Vertical Panel Design: Occupies minimal bench space with its upright ABS chassis. Fits into crowded laboratory setups without clutter.
- 6-Step Attenuator: Adjusts signal levels across a 0 to -50dB range. Provides precise amplitude control for sensitive circuit testing.
- Low Harmonic Distortion: Sine wave distortion remains under 0.5% across all frequencies. Produces clean signals for high-fidelity audio testing in BD labs.
- Fast Rise Time: Square waves switch at 0.5μs for high-speed analysis. Reveals transient response issues in digital circuit components.
- 5V RMS Output: Drives signals at a maximum of 5V RMS output voltage. Generates enough power for most audio amplifier input stages.
Frequently Asked Questions
What is the frequency range of TAG101?
The device covers a spectrum from 10Hz to 1MHz. This range allows testing from low bass frequencies to ultrasonic levels.
How to use TAG101 audio generator?
Connect the 600Ω output to the circuit under test and select sine or square waves. Adjust the 6-step attenuator to set the required signal amplitude.
