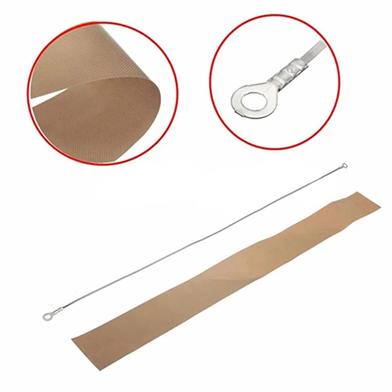

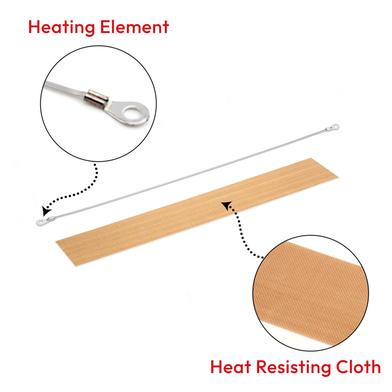

The 8 Inch Impulse Sealer Heat Wire Element Strip replaces damaged parts in PFS-200 or SF-200 manual sealers. Under high electric resistance, the 200mm nichrome wire creates the heat necessary to bond plastic films. Each kit provides both the heating element and the Teflon protective cloth for immediate machine repair.
Key Features
- 200mm Nichrome Element: High electric resistance facilitates rapid thermal output via nichrome metal. It melts plastic layers in two seconds.
- Nickel-Plated Finish: Oxidation-resistant coating maintains metal integrity despite high heat and humidity. The wire won't snap during heavy use.
- 2mm Sealing Width: Concentrated heat path generates a narrow 2mm bond on plastic. Produces clean seals on thin poly bags.
- Universal Compatibility: Direct replacement for PFS-200 and SF-200 8-inch manual sealing machines. Fixes broken sealers in under two minutes.
- Teflon Barrier Cloth: Heat-resistant non-stick fabric covers the 200mm nichrome heating element strip. Prevents melted plastic from sticking to wire.
Frequently Asked Questions
Which wire is used in hand sealer?
Nichrome wire is the standard for these heating elements. It withstands repeated thermal expansion and contraction without breaking.
How to replace impulse sealer heating element?
Unhook the old wire from the side tension springs after removing the end caps. Slide the new 200mm element into place and lay the Teflon cloth over it.
