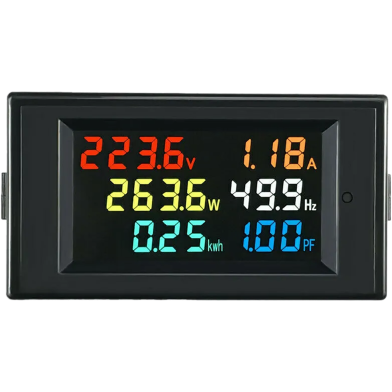

Peacefair PZEM-022 6-in-1 Digital Smart Energy Meter tracks voltage, current, power, energy, frequency, and power factor. Under the 80-260V AC range, the 100A capacity monitors high-draw appliances. This iteration replaces the PZEM-061 by adding frequency and power factor tracking to a new 6-parameter LCD.
Key Features
- Simultaneous 6-parameter monitoring: 80-260V, 100A, 22kW, 0.00-1.00 PF, and 45-65Hz tracking. Full electrical status visible at a glance.
- Non-invasive Split CT: 100A non-contact sensor clips around the primary live wire. Installation avoids cutting main power lines.
- Overload Alarm: User-defined wattage limit triggers a flashing blue LCD backlight. Warns before appliances trip your breaker.
- Auto-save Data Storage: EEPROM chip records kWh data when input power fails. Readings remain intact after load shedding.
Frequently Asked Questions
How to reset 6 in 1 energy meter?
Press and hold the key for five seconds until the energy display flashes. Release and press again to clear the kWh total.
Is digital energy meter accurate?
The unit utilizes an RN8208G IC for measurement logic. It maintains stable readings within a 1% error margin.
