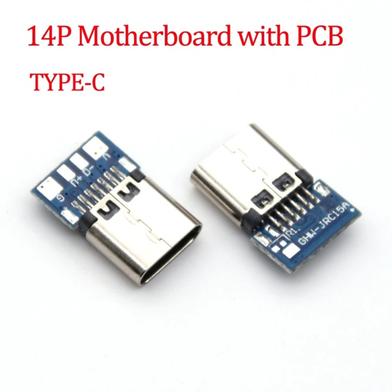

The USB Type-C 14-Pin Female Breakout Board facilitates high-speed power and data routing in custom circuits. It supports 5A charging speeds across a compact 1.5cm footprint. The integrated PCB mount allows for direct wire soldering without specialized industrial equipment.
Key Features
- 14-Pin Interface: 14-pin high-density layout for power and data transmission. Fits tight tolerances in custom enclosures.
- Pre-attached PCB: Integrated board with 4P welding pads for wire attachment. Simplifies the assembly of USB-C PCB connectors.
- 5A Current Rating: 50V maximum voltage with 5A high-current flow. Supports fast charging without damaging the connector.
- Thermal Tolerance: Operational range from -30 to +85°C. Maintains connection stability despite high heat or humidity.
Frequently Asked Questions
How to solder 14 pin USB C breakout board?
Use a fine-tip iron on the 4P welding pads with flux. This prevents short circuits between the dense 14-pin traces.
What is the pinout for 14 pin USB C female socket?
The board maps internal pins to VBUS, GND, and data lines. It provides standard soldering points for charging port replacement in electronics projects.
