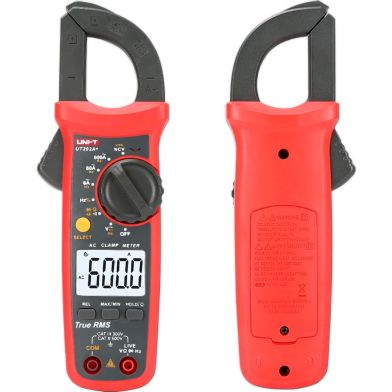

The Uni-T UT202A+ measures AC current up to 600A without breaking the circuit. True RMS circuitry processes non-linear loads for accurate readings on modern electronics. With a 6000-count display, it tracks voltage, resistance, and capacitance up to 60mF.
Key Features
- True RMS Integration: 6000-count display handles non-linear AC waveforms. Returns accurate values despite harmonic distortion.
- NCV Detection: Integrated sensor triggers audio-visual alarms near live conductors. Locates hidden wiring faults without direct contact.
- Live/Neutral Testing: Dedicated mode identifies hot wires using one probe. Simplifies phase identification during maintenance.
- 60mF Capacitance: High-range measurement for large industrial motor capacitors. Identifies failing components before system failure.
- 28mm Jaw Opening: Clamps around thick 600A conductors for non-invasive reading. Stands up to high humidity in local workshops.
Frequently Asked Questions
What is the difference between UT202+ and UT202A+?
The "A" variant uses a 6000-count display and adds Live wire testing. These upgrades provide better resolution than the base 4000-count model.
Can Uni-T UT202A+ measure DC current?
No, this unit only captures AC current via the clamp jaws. It measures DC voltage up to 600V through the test leads.
