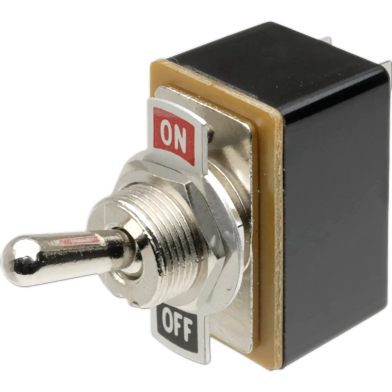

With a 6-pin DPDT configuration, the MTS-202 Self-Locking Metal Toggle Switch manages dual-circuit power flows. This miniature latching toggle switch handles 3A at 250V AC for panel-mounted electronic controls. Metal construction with a 14mm handle provides manual control for industrial or electronics projects.
Key Features
- Self-Locking Latching: Internal mechanism holds the switch position after manual activation. It stops accidental circuit disconnection from vibration or light contact.
- 14mm Metal Handle: Extended lever provides a distinct physical grip for manual switching. The length helps with operation inside recessed control panels.
- 6-Pin DPDT Layout: Dual-pole double-throw configuration manages two independent electrical circuits. This setup works for reversing motor polarity or toggling dual power rails.
- 6mm Mounting Hole: Standard diameter fits most pre-drilled industrial control panels and enclosures. Included hardware keeps the unit fixed during heavy sweat or humidity.
- 3A 250V AC Rating: Electrical contacts support high-voltage switching for small motors and power supplies. Rated for 10,000 cycles under standard operational loads.
Frequently Asked Questions
How to wire a 6 pin self locking toggle switch?
Connect the center pins to the incoming power and outer pins to the load. A 6-pin DPDT layout enables simultaneous control of two separate electrical lines.
What is the difference between latching and momentary toggle switches?
Latching switches stay in the set position until manually moved back. Momentary versions use a spring to return to the default state immediately.
