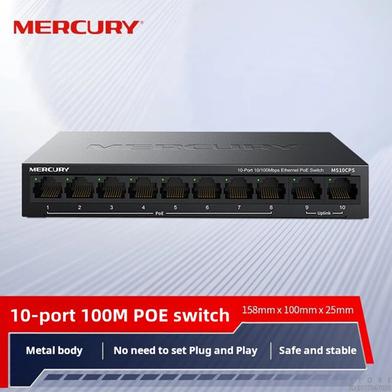

With eight PoE ports and two uplinks, the Mercury MS10CPS 10-Port Fast PoE Switch distributes power and data. The 65W total budget supports IP cameras or network extenders. Under road dust conditions, this unmanaged system maintains 10/100 Mbps speeds for stable surveillance in the BD network landscape.
Key Features
- 260m Ultra-Distance Mode: 10Mbps data rate at 260m range. Extends reach for distant IP cameras without extra repeaters.

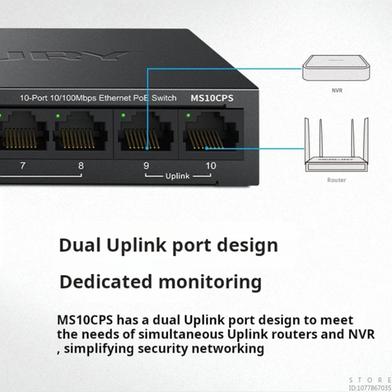

- Dual Uplink Ports: Two 10/100 Mbps ports for NVR and router. Connects local networks to storage and internet simultaneously.
- 65W PoE Budget: 15.4W maximum output per individual port. Powers eight standard IEEE 802.3af/at devices.
- Store-and-Forward Mode: 2 Gbps switching capacity with 2K MAC table. Reduces packet loss during heavy data traffic.
- Brand Warranty: 12 months coverage for manufacturing defects. Protects hardware against failure within the first year.
Frequently Asked Questions
What is the range of Mercury MS10CPS?
The switch reaches 260 meters in Ultra-Distance mode. Data speeds drop to 10 Mbps at this distance to maintain connection stability.
How many PoE ports does MS10CPS have?
Eight ports provide Power over Ethernet for connected devices. Two additional uplink ports handle data for NVRs or routers.
