With a 220V AC coil, the MY2NJ 8 Pin DPDT Relay switches dual electrical paths. Two contact sets manage 10A loads for industrial automation or power logic. Silver-plated gold surfaces maintain low resistance over 100,000 electrical cycles to prevent terminal overheating.
Key Features
- DPDT Architecture: 2NO 2NC contact form handles two independent circuits. Controls separate motors or lighting banks from one trigger.
- Visual Diagnostic: Integrated green LED illuminates when the 220V coil energizes. Confirms coil state instantly during grid power fluctuations.
- High-Capacity Contacts: 10A 250VAC/28VDC rating resists oxidation via silver-gold plating. Stops contact welding under heavy inductive loads.

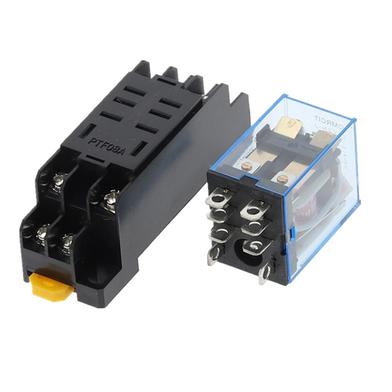

- Socket Mount: Detachable 8-pin base facilitates standard DIN rail installation. Accelerates field replacement without disconnecting hardwired terminals.
Frequently Asked Questions
What is the pin configuration of an 8 pin DPDT relay?
Pins 13 and 14 power the coil while remaining pins form two changeover sets. Check the casing diagram for specific terminal numbers.
How many amps can a MY2NJ relay handle?
The MY2NJ manages 10A for both AC and DC loads. Drawing more current risks melting the internal contact arms.
