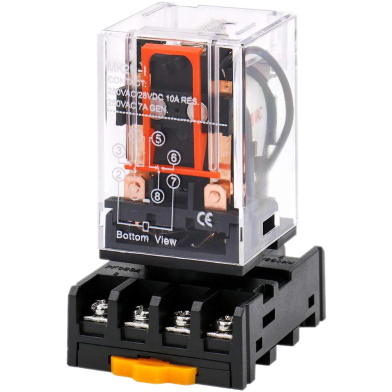

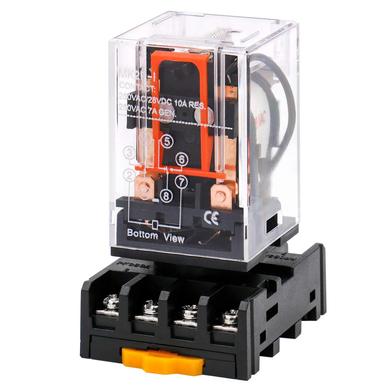

AC 220V relay with 10A capacity for effective power control

It is an electromagnetic relay that acts like a switch turned on by an electric current. The voltage of the coil is AC 220 volts, and the device finds its application in many electrical usages. In the DPDT configuration, it is possible to control several circuits. Hence, it finds its application in industries and at home. It efficiently controls higher voltage loads with a contact capacity of 250 VAC or 28 VDC, thus giving room for various sets of electrical configurations. It has been designed with reliability in mind so that users can easily integrate it into their projects or systems.

Design and Functionality

It is compactly designed and measures about 34 x 34 x 67 mm. The socket size is 5.5 x 4 x 2.1 cm. This ensures that it will fit into tight spaces without sacrificing performance. It weighs only 102 grams; hence, it is light though robust enough to ensure longevity under harsh environments. This relay also includes several terminals: the public points on terminals 1 and 8 provide for connections, while terminals 2 and 7 allow access to the voltage on the relay coil. Terminals 3 and 6 are generally open, and terminals 4 and 5 are typically closed, all providing a range of options for versatile control of several circuits.

Applications and Usability

This relay is quite versatile and does an excellent job in remote control systems and automatic controls found in various electronic gadgets. Durable in construction and with a good performance rating of 10A, this relay serves both home automation and industrial applications quite well. It could also be integrated with some communication systems to make them far more efficient. The installation procedure is relatively easy to follow; hence, a person with average electrical knowledge can install this device within no time, making the implementation phase of a project smooth and quick.

Price and Availability

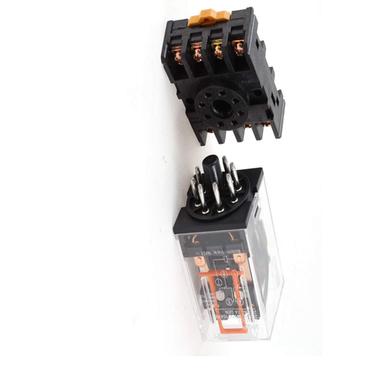

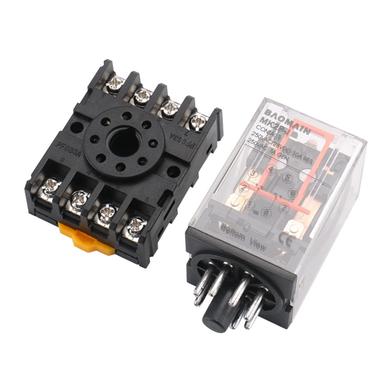

Electromagnetic relay-it's relatively cheap and hence a valuable addition to any electrical toolbox. Built for excellence and reliability, it will be a desirable option for both hobbyists and professionals alike in Bangladesh. This 8-pin electromagnetic relay has a base terminal for compatibility with different setups. It features high durability for industrial use where reliability is necessary. This relay is now readily available in the local market due to its consideration as one of the best options with the increased demand for efficient power control solutions.
