6-Way high performance signal amplifier.

128MB large memory.

Full terminal game acceleration.

Xiaomi smart home optimizes connection.

Support beam forming technology directional enhancement signal.

Built-in Netease UU game accelerator, low latency is more stable.

Stable connection of 128 devices.

MiWiFi APP5.0, more convenient and smarter.

Support IPv6, improved router forwarding efficiency and security.

Excellent heat dissipation.

Specifications:

Brand: Xiaomi

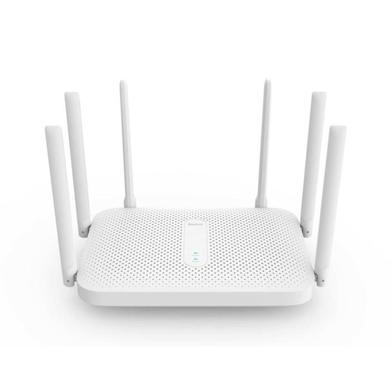

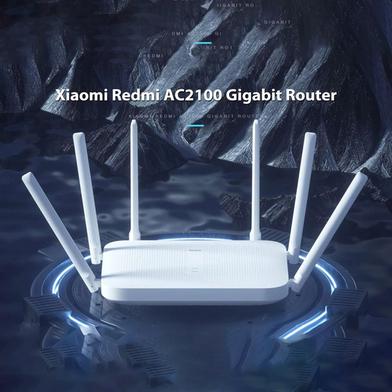

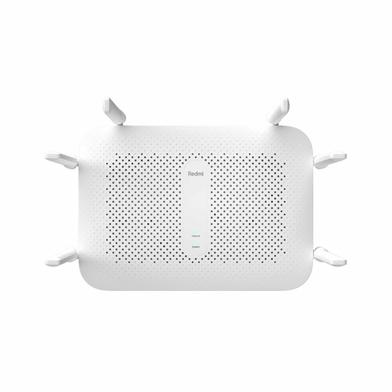

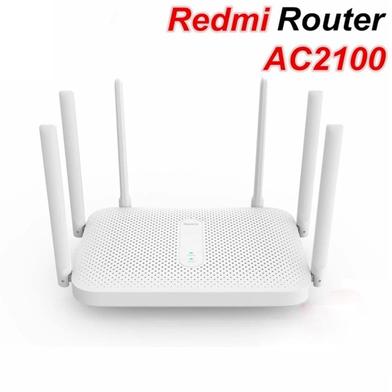

Model: Redmi AC2100

CPU MT7621A MIPS Dual core 880MHz

ROM 128MB

Memory 128MB

Wireless rate 2.4G Wi-Fi: 2*2 (IEEE 802.11n, 300Mbps)

5G Wi-Fi: 4*4 (IEEE 802.11ac, 1733Mbps)

Antenna 6*External high gain antenna

Heat dissipation Natural heat dissipation

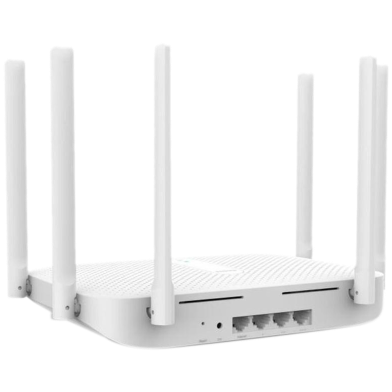

Physical interface 1*10/100/1000Mbps WAN (Auto MDI/ MDIX)

3*10/100/1000Mbps LAN (Auto MDI/ MDIX)

Indicator light 2*Indicators

Reset button 1*Reset button

Power input interface 1*Power input interface

Wireless standard IEEE802.11a/b/g/n/ac, IEEE 802.3/3u/3ab

Certification standards GB/T9254-2008; GB4943.1-2011

Dual band 2.4GHz/ 5GHz

Wireless channel 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

5GHz Channel: 36, 40, 44, 48, 149, 153, 157, 161, 165

Modulation Mode 11b: DSSS: DBPSK( 1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)

11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/54Mbps)

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0~MCS15

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM.

Rate set: MCS0~MCS9 (4 streams supported)

Operating system Intelligent router operating system MiWiFi ROM based on OpenWRT deep customization

Wireless security WPA-PSK / WPA2-PSK encryption, wireless access control (black and white list), hidden SSID, intelligent anti-scratch network

Management application Support Web, Android, iOS

Working environment

Working temperature: 0~40℃

Storage temperature: 10 percent~90 percentRH Non-condensing

Working humidity: -40~70℃

Storage humidity: 5 percent~90 percentRH Non-condensing

Product size 259mm*176mm*184mm (L*W*H)

Language Chinese (Support Mi WiFi English App)
