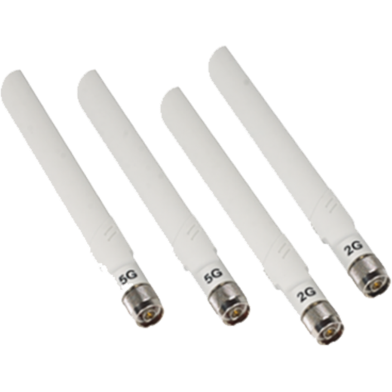

The Netgear ANT24501B provides signal expansion for outdoor dual-band wireless deployments. This 4-unit kit broadcasts over 2.4GHz and 5GHz frequencies via omni-directional radiation. Under high-traffic conditions, the 5dBi and 7dBi gain stages maintain link stability across open spaces.
Key Features
- Dual-Band Support: Operates on 2.4GHz and 5GHz frequencies with 802.11 a/b/g/n compatibility. Shifts data traffic to clear channels during local network congestion.
- 360-Degree Coverage: Omni-directional signal distribution with 360° horizontal and 11° vertical beam width. Eliminates dead zones in open areas like parking lots.
- Weatherproof Build: Industrial-grade housing designed for mounting in extreme outdoor environments. Resists road dust and heavy humidity without signal degradation.
- High Gain Output: Delivers 5dBi gain on 2.4GHz and 7dBi on 5GHz bands. Increases signal reach for users far from the access point.
- N-Plug Male Connector: Integrated N-type male connectors for direct hardware attachment to base units. Fits Netgear WND930 or any standard N-female antenna port.
- Linear Vertical Polarization: Broadcasts signal through a linear vertical orientation to maximize antenna efficiency. Reduces interference from nearby horizontal electronic transmissions.
Frequently Asked Questions
Is Netgear ANT24501B compatible with other routers?
The N-Plug Male connectors fit any router or access point equipped with N-Female ports. It works across all standard 802.11 a/b/g/n wireless network hardware.
What is the range of Netgear ANT24501B?
Signal distance varies based on the connected transmitter's power and physical obstructions. The 7dBi gain on the 5GHz band significantly extends the radius compared to factory antennas.
